| MOQ: | 1個 |
| 価格: | 0.99-99USD/PCS |
| 標準パッケージ: | パッキング |
| 配達期間: | 2〜10営業日 |
| 決済方法: | T/T、ペイパル |
| 供給能力: | 50000個 |

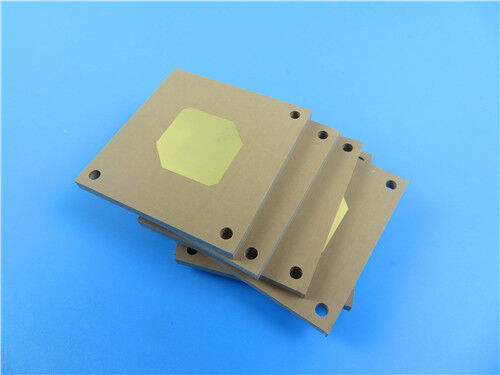

Rogers' TMM4 PCB: Reliable Performance for High-Frequency Designs
In the dynamic world of high-frequency electronics, design engineers are always on the lookout for reliable solutions that deliver consistent performance. Today, I'm excited to introduce you to the Rogers TMM4 PCB – a 2-layer offering that combines practical specifications with exceptional quality.
Solid Electrical Characteristics
At the core of this PCB is the Rogers TMM4 thermoset microwave material. With a dielectric constant (Dk) of 4.50 ± 0.045 and a dissipation factor of 0.0020 at 10GHz, this laminate provides stable electrical properties essential for RF and microwave applications.
Robust and Reliable Construction
Measuring 47mm x 118mm with a tight tolerance of ±0.15mm, this 2-layer PCB features a 1.6mm finished thickness and 1oz (1.4 mils) copper weight on the outer layers. The board's specifications include a minimum trace/space of 5/7 mils, minimum hole size of 0.35mm, and a Gold over Silver plating for reliable solderability.
Uncompromising Reliability
Engineered to the stringent IPC-Class-2 standard, the TMM4 PCB is designed to withstand the rigors of high-frequency applications. With a CTE matched to copper, this solution ensures dimensional stability and resistance to warpage, even in demanding environments. Additionally, 100% electrical testing is performed prior to shipment, guaranteeing defect-free boards.
Versatile Applications
Whether your focus is on RF and microwave circuitry, power amplifiers, filters, or other high-frequency electronics, the TMM4 PCB is a reliable choice. Its consistent electrical characteristics and robust construction make it suitable for a wide range of next-generation high-frequency designs.
Experience the dependable performance of Rogers' TMM4 PCB solution, available worldwide. Unlock the potential of your high-frequency designs with this practical and well-engineered offering.
|
|
